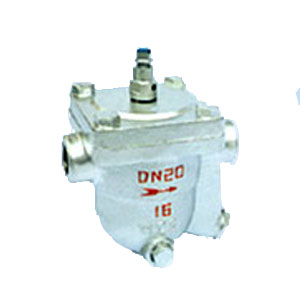

CS11H自由浮球式蒸汽疏水閥
疏水閥是自動閥門，尤其對壓力低、排水量低和溫度穩定性要求高，不宜帶存凝結水的蒸汽設備更為適用。工作原理：本產品根據浮力的原理，使閥體內的浮球隨水位變化作升降運動，以達到閥門啟閉，即排水阻汽作用。其結構特點：1、能連續排水、性能穩定、排水量大、漏水量小。2、能排連續飽和水，至使設備凝結水帶滯存量較少、升溫快、加熱溫度穩定。3、有自動排冷空氣裝置，無汽鎖現象，工作平衡無噪音。
CS11H自由浮球式蒸汽疏水閥主要零部件材料：
|
主要零件
|
材料
|
|
閥體
|
碳鋼
|
|
閥蓋
|
碳鋼
|
|
閥座
|
不銹鋼
|
|
過濾器
|
不銹鋼
|
CS11H自由浮球式蒸汽疏水閥結構圖：
CS11H自由浮球式蒸汽疏水閥主要連接尺寸：
|
尺寸
|
型號
|
CS11H-16C
|
|
口徑DN
|
15
|
20
|
25
|
32
|
40
|
50
|
|
L
|
150
|
150
|
150
|
270
|
280
|
290
|
|
H
|
195
|
195
|
195
|
250
|
290
|
300
|
|
H1
|
103
|
103
|
103
|
108
|
108
|
108
|
CS11H自由浮球式蒸汽疏水閥結構圖：
CS11H自由浮球式蒸汽疏水閥主要連接尺寸：
|
產品型號
|
口徑
|
尺寸
|
|
DN
|
L
|
H
|
D
|
D1
|
D2
|
b
|
f
|
Z-Φd
|
|
CS41H-16/25/40C-B
|
15
|
195
|
195
|
95
|
65
|
45
|
14
|
2
|
4-Φ14
|
|
20
|
195
|
200
|
105
|
75
|
55
|
14
|
2
|
4-Φ14
|
|
25
|
215
|
225
|
115
|
85
|
65
|
14
|
2
|
4-Φ14
|
|
CS41H-16/25/40C-D
|
25
|
270
|
245
|
115
|
85
|
65
|
14
|
2
|
4-Φ14
|
|
32
|
270
|
250
|
135
|
100
|
78
|
16
|
2
|
4-Φ18
|
|
40
|
280
|
290
|
145
|
110
|
85
|
16
|
3
|
4-Φ18
|
|
50
|
290
|
300
|
160
|
125
|
100
|
16
|
3
|
4-Φ18
|
|
CS41H-16/25C-F
|
50
|
410
|
380
|
160
|
125
|
100
|
16
|
3
|
4-Φ18
|
|
65
|
410
|
380
|
180
|
145
|
120
|
18
|
3
|
4-Φ18
|
|
80
|
430
|
420
|
195
|
160
|
135
|
20
|
3
|
8-Φ18
|
|
100
|
430
|
440
|
215
|
180
|
155
|
20
|
3
|
8-Φ18
|
|
125
|
480
|
510
|
245
|
210
|
185
|
22
|
3
|
8-Φ18
|
|
150
|
480
|
510
|
280
|
240
|
210
|
24
|
3
|
8-Φ23
|
CS41H、CS11H自由浮球式蒸汽疏水閥排量表：
|
型號
|
通徑 (mm)
|
最高工作壓力
|
不同壓差 (△P)下的排水量（Kg/h)
|
|
0.5
|
0.2
|
0.4
|
0.6
|
0.8
|
1.0
|
1.2
|
1.6
|
2.0
|
2.5
|
3.0
|
3.5
|
4.0
|
|
CS11H-16
CS11H-16C
CS41H-16
|
15
20
25
|
0.4
|
310
|
500
|
620
|
|
|
|
|
|
|
|
|
|
|
|
0.8
|
260
|
390
|
500
|
550
|
580
|
|
|
|
|
|
|
|
|
|
1.2
|
300
|
340
|
370
|
400
|
430
|
460
|
490
|
|
|
|
|
|
|
|
1.6
|
260
|
290
|
320
|
350
|
380
|
410
|
440
|
470
|
|
|
|
|
|
|
CS11H-16
CS41H-16
CS11H-16C
CS41H-16C
CS41H-25
CS41H-40
|
15
20
25
|
0.4
|
490
|
750
|
980
|
|
|
|
|
|
|
|
|
|
|
|
0.8
|
430
|
650
|
760
|
820
|
890
|
|
|
|
|
|
|
|
|
|
1.2
|
400
|
510
|
570
|
620
|
700
|
760
|
820
|
|
|
|
|
|
|
|
1.6
|
|
390
|
450
|
510
|
570
|
620
|
700
|
760
|
|
|
|
|
|
|
2.5
|
|
|
|
280
|
340
|
380
|
440
|
500
|
560
|
620
|
|
|
|
|
4.0
|
|
|
|
|
|
|
290
|
330
|
380
|
430
|
480
|
520
|
560
|
|
CS41H-16
CS41H-16C
CS41H-25
CS41H-40
|
25
32
40
50
|
0.4
|
1850
|
2500
|
2980
|
|
|
|
|
|
|
|
|
|
|
|
0.8
|
1250
|
1900
|
2100
|
2450
|
2750
|
|
|
|
|
|
|
|
|
|
1.2
|
900
|
1450
|
1650
|
1900
|
2100
|
2250
|
2400
|
|
|
|
|
|
|
|
1.6
|
|
1200
|
1560
|
1450
|
1450
|
1650
|
1750
|
2100
|
|
|
|
|
|
|
2.5
|
|
|
|
700
|
850
|
950
|
1050
|
1200
|
1350
|
1650
|
|
|
|
|
4.0
|
|
|
|
|
|
700
|
750
|
800
|
860
|
920
|
980
|
1050
|
1150
|
|
CS41H-16
CS41H-16C
CS41H-25
CS41H-40
|
40
50
|
0.4
|
2800
|
4250
|
5800
|
|
|
|
|
|
|
|
|
|
|
|
0.8
|
1800
|
2980
|
3650
|
4250
|
4750
|
|
|
|
|
|
|
|
|
|
1.2
|
|
2500
|
3000
|
3450
|
3900
|
4100
|
4500
|
|
|
|
|
|
|
|
1.6
|
|
2150
|
2650
|
3000
|
3300
|
3600
|
3950
|
4100
|
|
|
|
|
|
|
2.5
|
|
|
|
|
2100
|
2650
|
3000
|
3300
|
3650
|
3900
|
|
|
|
|
4.0
|
|
|
|
|
|
1000
|
1350
|
1650
|
1950
|
2250
|
2500
|
2750
|
3000
|
|
CS41H-16
CS41H-16C
CS41H-25
CS41H-40
|
50
65
80
100
150
|
0.4
|
5000
|
8500
|
11500
|
|
|
|
|
|
|
|
|
|
|
|
0.8
|
4200
|
6200
|
7800
|
8900
|
9500
|
|
|
|
|
|
|
|
|
|
1.2
|
2200
|
3600
|
4700
|
5500
|
6200
|
6800
|
7600
|
|
|
|
|
|
|
|
1.6
|
|
3600
|
4400
|
5000
|
5400
|
5900
|
6100
|
6800
|
|
|
|
|
|
|
2.5
|
|
|
|
3200
|
3600
|
3900
|
4200
|
4700
|
5100
|
5400
|
|
|
|
|
4.0
|
|
|
|
|
|
2850
|
3000
|
3250
|
3700
|
3950
|
4050
|
4400
|
5000
|
